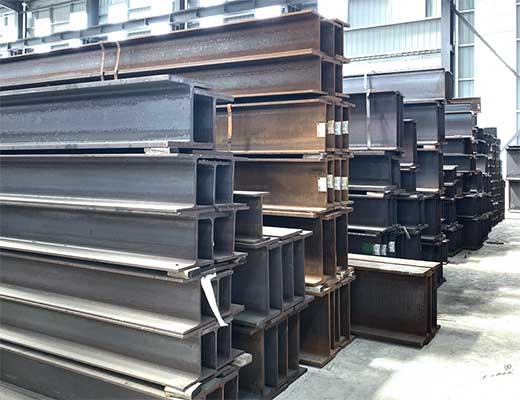

    H Beams (H-Piles)

    H beams engineered for deep foundation and heavy load bearing applications where maximum strength and equal flange and web thickness are required. Hot rolled from certified steel and processed to tight dimensional tolerances, these beams are built to withstand driving stresses and sustained structural loads in demanding site conditions.

    Key Features

    • H pile profile with equal flange and web thickness for driving strength
    • Hot rolled construction for consistent grain structure and strength
    • Manufactured to ASTM A572 and A36 standards
    • Straightness and camber controlled within AISC tolerances
    • Mill finish, primed, or hot dip galvanized coating options
    • Custom cutting, drilling, and length options for project specific orders
    Get Free Quotation
    Category
    H Beams (H-Piles)

    Product Details

    <p><strong>Chemical Composition (ASTM A572 Grade 50)</strong></p>
    <table>
    <tr><th>Element</th><th>Percentage</th></tr>
    <tr><td>Carbon</td><td>0.23 max</td></tr>
    <tr><td>Manganese</td><td>1.35 max</td></tr>
    <tr><td>Phosphorus</td><td>0.04 max</td></tr>
    <tr><td>Sulfur</td><td>0.05 max</td></tr>
    <tr><td>Silicon</td><td>0.40 max</td></tr>
    <tr><td>Vanadium</td><td>0.01 to 0.15</td></tr>
    </table>

    <p><strong>Mechanical Properties</strong></p>
    <table>
    <tr><th>Property</th><th>Value</th></tr>
    <tr><td>Yield strength</td><td>50 ksi min</td></tr>
    <tr><td>Tensile strength</td><td>65 ksi min</td></tr>
    <tr><td>Elongation</td><td>18 percent min in 2 inches</td></tr>
    <tr><td>Yield to tensile ratio</td><td>0.85 max</td></tr>
    </table>

    <p><strong>Size Chart</strong></p>
    <table>
    <tr><th>Designation</th><th>Depth (in)</th><th>Flange Width (in)</th><th>Web Thickness (in)</th><th>Weight (lb/ft)</th></tr>
    <tr><td>HP8x36</td><td>8.02</td><td>8.16</td><td>0.445</td><td>36</td></tr>
    <tr><td>HP10x42</td><td>9.70</td><td>10.08</td><td>0.415</td><td>42</td></tr>
    <tr><td>HP12x53</td><td>11.78</td><td>12.05</td><td>0.435</td><td>53</td></tr>
    <tr><td>HP12x74</td><td>12.13</td><td>12.22</td><td>0.610</td><td>74</td></tr>
    <tr><td>HP14x73</td><td>13.61</td><td>14.59</td><td>0.505</td><td>73</td></tr>
    <tr><td>HP14x89</td><td>13.83</td><td>14.70</td><td>0.615</td><td>89</td></tr>
    <tr><td>HP14x117</td><td>14.21</td><td>14.89</td><td>0.805</td><td>117</td></tr>
    </table>
