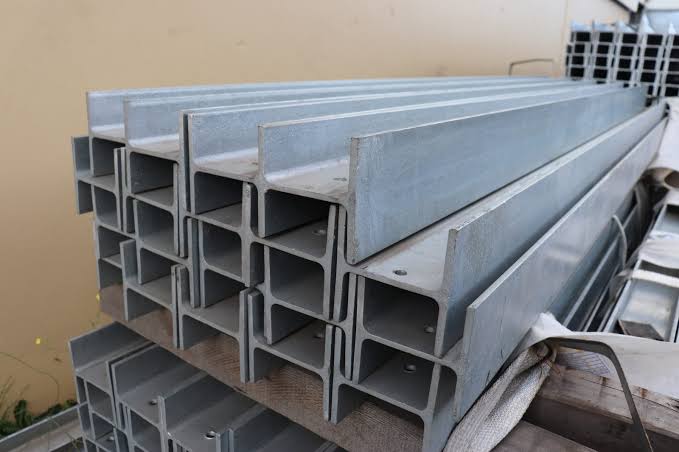

Structural Steel Columns
Structural steel columns engineered for vertical load bearing applications in buildings, warehouses, and heavy structures. Hot rolled from certified steel and processed to tight dimensional tolerances, these columns deliver the axial strength and stability required to support beams, floors, and roof systems across multi story and industrial construction.
Key Features
- Square and round hollow structural section (HSS) profiles available
- Hot rolled and cold formed construction depending on section type
- Manufactured to ASTM A500 and A36 standards
- Straightness and squareness controlled within ASTM tolerances
- Mill finish, primed, or hot dip galvanized coating options
- Custom cutting, base plate welding, and drilling available on request
Product Details
Chemical Composition (ASTM A500 Grade B)
| Element | Percentage |
|---|---|
| Carbon | 0.26 max |
| Manganese | 1.35 max |
| Phosphorus | 0.035 max |
| Sulfur | 0.035 max |
| Copper | 0.20 min when specified |
Mechanical Properties
| Property | Value |
|---|---|
| Yield strength | 46 ksi min |
| Tensile strength | 58 ksi min |
| Elongation | 23 percent min in 2 inches |
| Yield to tensile ratio | 0.85 max |
Size Chart
| Designation | Size (in) | Wall Thickness (in) | Weight (lb/ft) |
|---|---|---|---|
| HSS4x4 | 4.00 x 4.00 | 0.25 | 11.97 |
| HSS6x6 | 6.00 x 6.00 | 0.312 | 22.36 |
| HSS8x8 | 8.00 x 8.00 | 0.375 | 36.71 |
| HSS10x10 | 10.00 x 10.00 | 0.500 | 60.99 |
| HSS12x12 | 12.00 x 12.00 | 0.625 | 91.75 |
| Round 6.625 OD | 6.625 diameter | 0.280 | 18.97 |
| Round 8.625 OD | 8.625 diameter | 0.322 | 28.55 |
