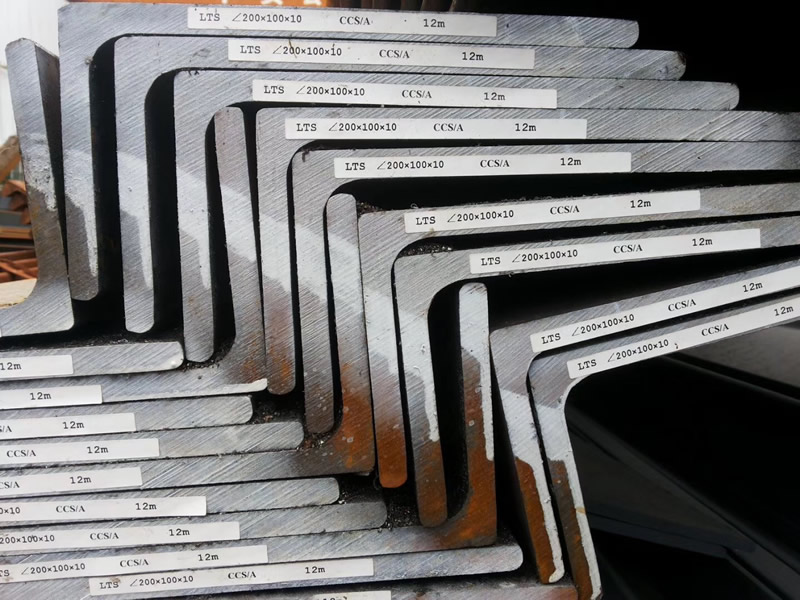

Angle Bars
Steel angle bars engineered for bracing, framing, and general fabrication applications where an L shaped profile provides efficient support at connection points. Hot rolled from certified steel and processed to consistent dimensional tolerances, these angles are suited for both structural and light industrial use.
Key Features
- Standard L shaped (angle) profile, equal and unequal leg options
- Hot rolled construction for consistent grain structure and strength
- Manufactured to ASTM A36 standard
- Straightness controlled within AISC tolerances
- Mill finish, primed, or hot dip galvanized coating options
- Custom cutting, drilling, and length options for project specific orders
Product Details
Chemical Composition (ASTM A36)
| Element | Percentage |
|---|---|
| Carbon | 0.26 max |
| Manganese | 0.80 to 1.20 |
| Phosphorus | 0.04 max |
| Sulfur | 0.05 max |
| Silicon | 0.40 max |
| Copper | 0.20 min when specified |
Mechanical Properties
| Property | Value |
|---|---|
| Yield strength | 36 ksi min |
| Tensile strength | 58 to 80 ksi |
| Elongation | 20 percent min in 2 inches |
| Yield to tensile ratio | 0.85 max |
Size Chart
| Designation | Leg Size (in) | Thickness (in) | Weight (lb/ft) |
|---|---|---|---|
| L2x2 | 2.00 x 2.00 | 0.25 | 3.19 |
| L3x3 | 3.00 x 3.00 | 0.25 | 4.9 |
| L4x4 | 4.00 x 4.00 | 0.375 | 9.8 |
| L5x3 | 5.00 x 3.00 | 0.375 | 9.4 |
| L6x4 | 6.00 x 4.00 | 0.50 | 15.3 |
| L6x6 | 6.00 x 6.00 | 0.50 | 19.6 |
