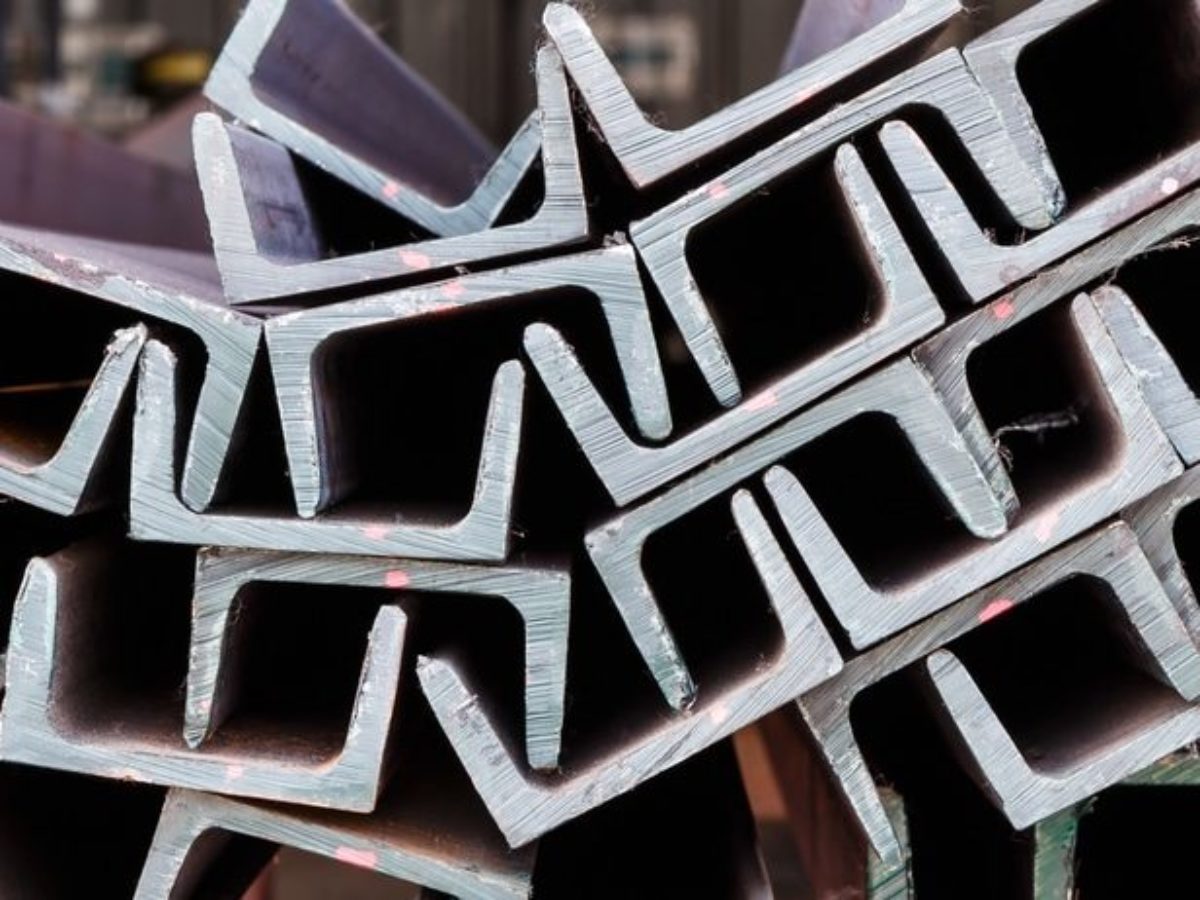

Structural Channels
Structural steel channels engineered for framing, bracing, and general fabrication applications where a C shaped profile provides efficient load support. Hot rolled from certified steel and processed to consistent dimensional tolerances, these channels are suited for both structural and light industrial use.
Key Features
- Standard C shaped (channel) profile with flat back
- Hot rolled construction for consistent grain structure and strength
- Manufactured to ASTM A36 standard
- Straightness and camber controlled within AISC tolerances
- Mill finish, primed, or hot dip galvanized coating options
- Custom cutting, drilling, and length options for project specific orders
Product Details
Chemical Composition (ASTM A36)
| Element | Percentage |
|---|---|
| Carbon | 0.26 max |
| Manganese | 0.80 to 1.20 |
| Phosphorus | 0.04 max |
| Sulfur | 0.05 max |
| Silicon | 0.40 max |
| Copper | 0.20 min when specified |
Mechanical Properties
| Property | Value |
|---|---|
| Yield strength | 36 ksi min |
| Tensile strength | 58 to 80 ksi |
| Elongation | 20 percent min in 2 inches |
| Yield to tensile ratio | 0.85 max |
Size Chart
| Designation | Depth (in) | Flange Width (in) | Web Thickness (in) | Weight (lb/ft) |
|---|---|---|---|---|
| C3x4.1 | 3.00 | 1.41 | 0.17 | 4.1 |
| C4x5.4 | 4.00 | 1.58 | 0.18 | 5.4 |
| C5x6.7 | 5.00 | 1.75 | 0.19 | 6.7 |
| C6x8.2 | 6.00 | 1.92 | 0.20 | 8.2 |
| C8x11.5 | 8.00 | 2.26 | 0.22 | 11.5 |
| C10x15.3 | 10.00 | 2.60 | 0.24 | 15.3 |
| C12x20.7 | 12.00 | 2.94 | 0.28 | 20.7 |
