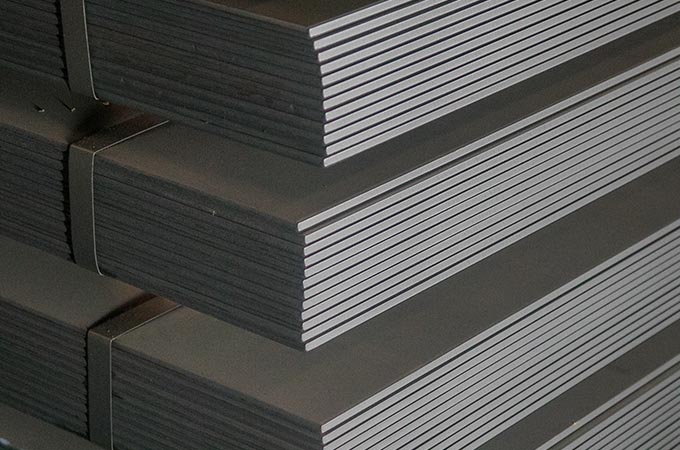

Cold Rolled Plates
Cold rolled steel plates engineered for applications requiring tighter tolerances, smoother surface finish, and improved mechanical properties compared to hot rolled products. Processed at room temperature after initial hot rolling, these plates deliver precise thickness control and enhanced surface quality for fabrication and machinery applications.
Key Features
- Smooth, clean surface finish suitable for visible applications
- Tighter thickness tolerance than hot rolled plate
- Manufactured to ASTM A1008 and A1011 standards
- Improved strength from cold working process
- Mill finish, oiled, or coated options available
- Custom cutting, shearing, and blanking available on request
Product Details
Chemical Composition (ASTM A1008)
| Element | Percentage |
|---|---|
| Carbon | 0.15 max |
| Manganese | 0.60 max |
| Phosphorus | 0.03 max |
| Sulfur | 0.035 max |
Mechanical Properties
| Property | Value |
|---|---|
| Yield strength | 30 to 50 ksi |
| Tensile strength | 49 ksi min |
| Elongation | 20 percent min in 2 inches |
| Yield to tensile ratio | 0.85 max |
Size Chart
| Thickness (in) | Standard Width (in) | Standard Length (in) | Weight (lb/sq ft) |
|---|---|---|---|
| 0.036 | 36 to 60 | 96 to 144 | 1.5 |
| 0.048 | 36 to 60 | 96 to 144 | 2.0 |
| 0.060 | 36 to 60 | 96 to 144 | 2.5 |
| 0.075 | 36 to 60 | 96 to 144 | 3.1 |
| 0.105 | 36 to 60 | 96 to 144 | 4.3 |
| 0.135 | 36 to 60 | 96 to 144 | 5.5 |
