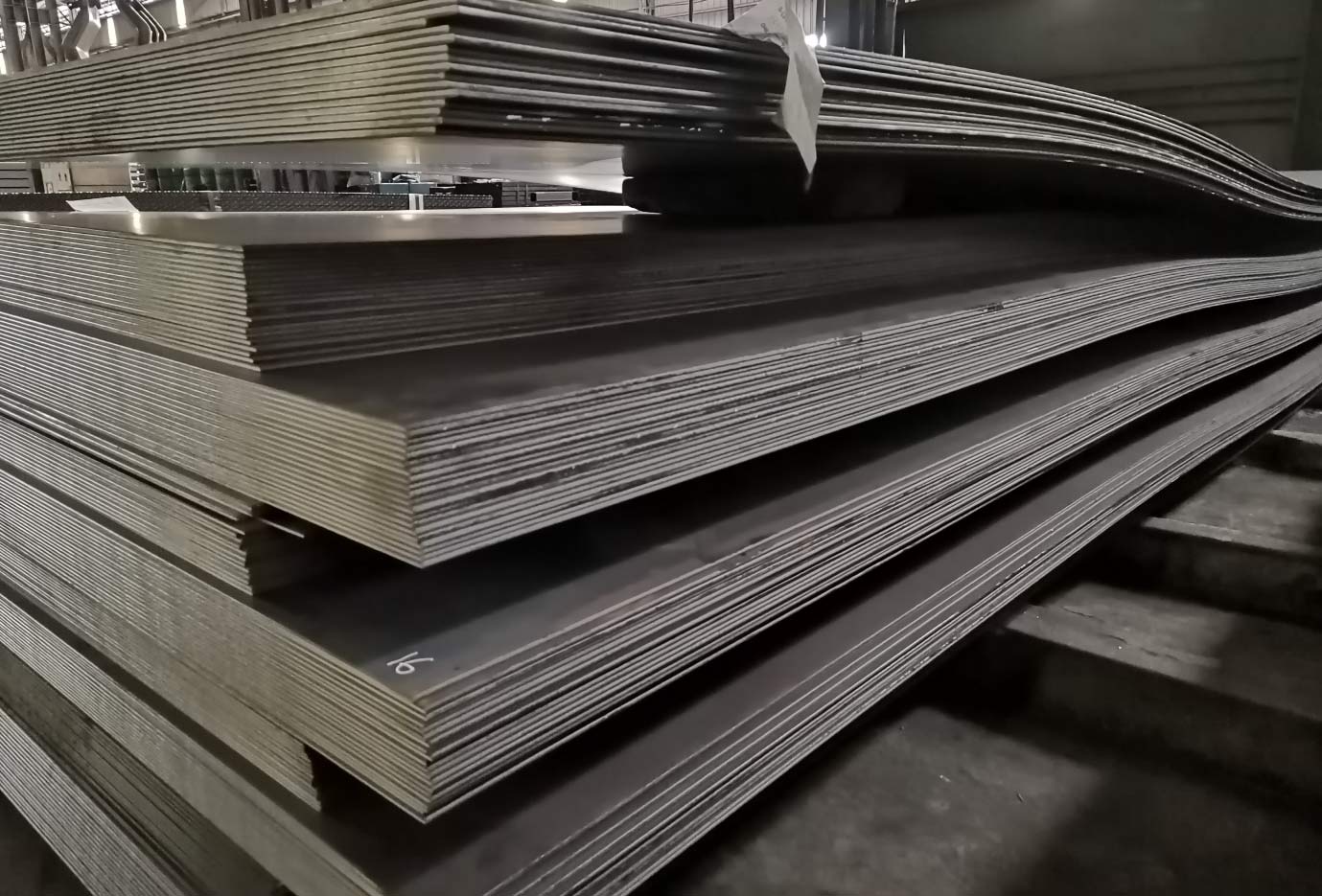

Hot Rolled Plates
Hot rolled steel plates engineered for structural fabrication, machinery bases, and heavy equipment applications. Processed at high temperature and rolled to consistent thickness, these plates offer strength, weldability, and dimensional reliability across a wide range of industrial and construction uses.
Key Features
- Available in a wide range of thicknesses and plate sizes
- Hot rolled process for improved workability and weldability
- Manufactured to ASTM A36 and A572 standards
- Flat, level surface with minimal internal stress
- Mill finish, primed, or blasted and coated options available
- Custom cutting, shearing, and plasma cutting available on request
Product Details
Chemical Composition (ASTM A36)
| Element | Percentage |
|---|---|
| Carbon | 0.26 max |
| Manganese | 0.80 to 1.20 |
| Phosphorus | 0.04 max |
| Sulfur | 0.05 max |
| Silicon | 0.40 max |
| Copper | 0.20 min when specified |
Mechanical Properties
| Property | Value |
|---|---|
| Yield strength | 36 ksi min |
| Tensile strength | 58 to 80 ksi |
| Elongation | 20 percent min in 2 inches |
| Yield to tensile ratio | 0.85 max |
Size Chart
| Thickness (in) | Standard Width (in) | Standard Length (in) | Weight (lb/sq ft) |
|---|---|---|---|
| 0.25 | 48 to 120 | 96 to 480 | 10.2 |
| 0.375 | 48 to 120 | 96 to 480 | 15.3 |
| 0.50 | 48 to 120 | 96 to 480 | 20.4 |
| 0.75 | 48 to 120 | 96 to 480 | 30.6 |
| 1.00 | 48 to 120 | 96 to 480 | 40.8 |
| 1.50 | 48 to 96 | 96 to 360 | 61.2 |
| 2.00 | 48 to 96 | 96 to 360 | 81.6 |
