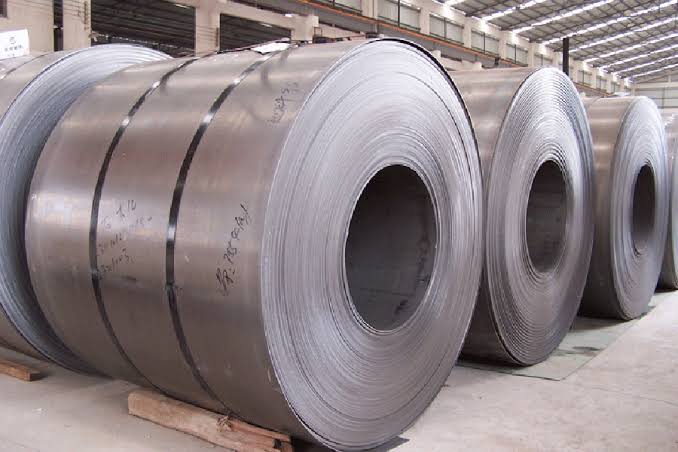

Steel Coil
Flat rolled steel coil engineered for high volume manufacturing and continuous processing applications. Wound to consistent inner diameter and coil weight, this product supports efficient handling and feeding into roll forming, stamping, and slitting operations across industrial production lines.
Key Features
- Available in hot rolled and cold rolled options
- Consistent gauge thickness across full coil length
- Manufactured to ASTM A1011 and A1008 standards
- Uniform coil winding for reliable uncoiling and feeding
- Mill finish, galvanized, or painted coating options available
- Custom slitting and re-coiling available on request
Product Details
Chemical Composition (ASTM A1011)
| Element | Percentage |
|---|---|
| Carbon | 0.15 max |
| Manganese | 0.60 max |
| Phosphorus | 0.03 max |
| Sulfur | 0.035 max |
Mechanical Properties
| Property | Value |
|---|---|
| Yield strength | 30 to 55 ksi |
| Tensile strength | 49 ksi min |
| Elongation | 17 percent min in 2 inches |
| Yield to tensile ratio | 0.85 max |
Size Chart
| Gauge | Thickness (in) | Standard Width (in) | Coil Weight (lb) |
|---|---|---|---|
| 10 | 0.135 | 48 to 60 | 10,000 to 20,000 |
| 12 | 0.105 | 48 to 60 | 10,000 to 20,000 |
| 14 | 0.075 | 48 to 60 | 10,000 to 20,000 |
| 16 | 0.060 | 48 to 60 | 10,000 to 20,000 |
| 18 | 0.048 | 48 to 60 | 10,000 to 20,000 |
| 20 | 0.036 | 48 to 60 | 10,000 to 20,000 |
